# 题目

猿人学 2023 届第三题 点击跳转

# 0x01 降维打击

这里 if 都是多层嵌套的，非常影响阅读体验，直接一步将它变为一维结构吧！

还原前先手动还原小部分代码，接着写反混淆脚本批量修改。

我们单看 if (o < 2) 这个 if 块，很明显 o < 1 其实就是 o==0 而 else 就是 o==1 , 以此类推。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
(function (e) {
  var o = e || 2;
  for (;;)
    if (o < 2) {
      if (o < 1) {
        o += 88;
      } else {
        v.v = !1;
        o += 226;
      }
    } else {
      if (o < 3) {
        o += 243;
      } else {
        L = Y || l.length;
        o += 4;
      }
    }
})();
// 手动还原一下 还原如下
(function (e) {
  var o = e || 2;
  switch (o) {
    case 0:
      o += 88;
    case 1:
      v.v = !1;
      o += 226;
    case 2:
      o += 243;
    case 3:
      L = Y || l.length;
      o += 4;
  }
})();

这是我写的插件，将多层嵌套的 if 转换为 Switch 语法，可以方便我们后续调试。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
const IfToCase = {
  IfStatement: {
    exit(path, state) {
      const { test, consequent, alternate } = path.node;
      let { name, cases } = state;
      // 如果 test 不是 o < 数字，则不进行处理
      if (!types.isBinaryExpression(test, { operator: "<" })) return;
      if (!types.isIdentifier(test.left, { name: name })) return;
      if (!types.isNumericLiteral(test.right)) return;

      // alternate.body.push(types.BreakStatement());
      // consequent.body.push(types.BreakStatement());

      const right = test.right.value;

      if (right % 2 === 0) {
        // 处理 else 不是 if 节点的情况
        if (types.isIfStatement(alternate.body[0])) return;
        cases.push(types.SwitchCase(types.valueToNode(right), alternate.body));
        return;
      }

      // 构建 case 节点
      const case1 = types.SwitchCase(
        types.valueToNode(right - 1),
        consequent.body
      );
      const case2 = types.SwitchCase(types.valueToNode(right), alternate.body);
      cases.push(case1, case2);
    },
  },
};

const IfToSwitch = {
  ForStatement(path) {
    const { init, test, update, body } = path.node;
    const prev = path.getPrevSibling();

    if (!types.isIfStatement(body)) return;

    const discriminant = prev.node.declarations[0].id;

    let cases = [];

    path.traverse(IfToCase, { name: discriminant.name, cases: cases });

    if (!cases.length) return;

    const switchNode = types.SwitchStatement(discriminant, cases);

    path.get("body").replaceInline(switchNode);
  },
};

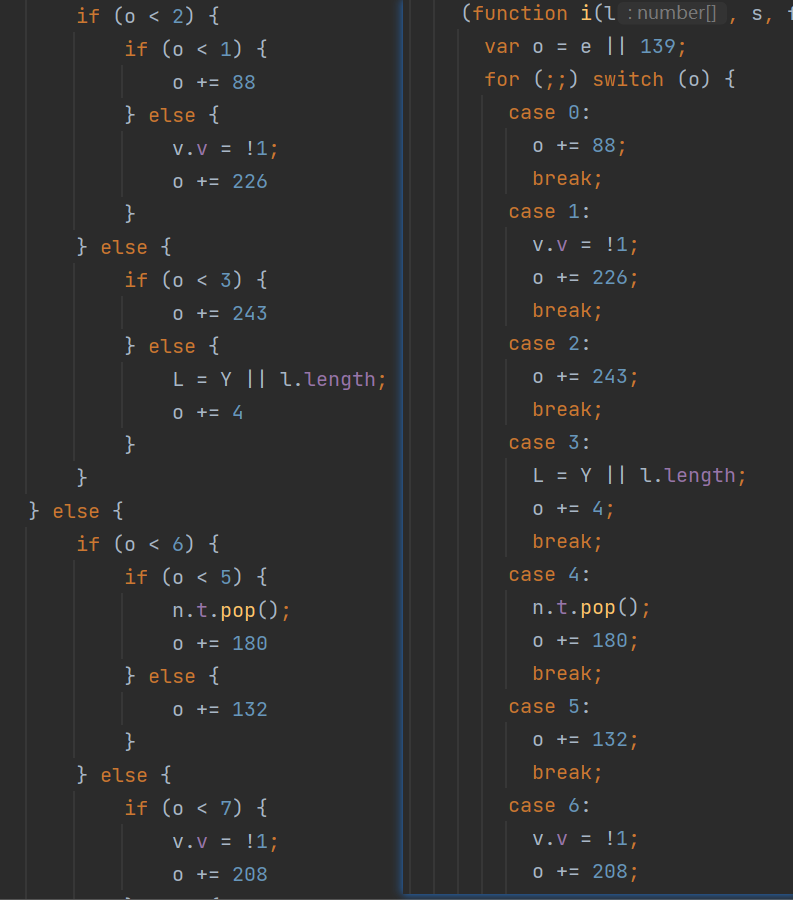

对比效果图如下，处理后清晰了不少。

# 0x02 打回原形

经过上一步还原后发现有很多 o += xx | o -= xx 的代码，这里的 o 其实就是 case 的条件，那么简化一下吧！ o = o - xxx 其中 o - xxx 部分我们计算出来。

下面插件来喽！又香又脆，嘎嘎香！

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
const RestoreJump = {
  AssignmentExpression(path) {
    let { operator, left, right } = path.node;

    if (!(operator[1] === "=" && types.isNumericLiteral(right))) return;

    let caseNode = path.findParent((p) => p.isSwitchCase());

    let { consequent, test } = caseNode.node;
    // 构建 ast 节点  o -= xxx  改为 o - xxx ,

    let _node = types.assignmentExpression(
      "=",
      left,
      types.valueToNode(
        operator[0] === "-"
          ? test.value - right.value
          : test.value + right.value
      )
    );
    path.replaceInline(_node);
  },
};

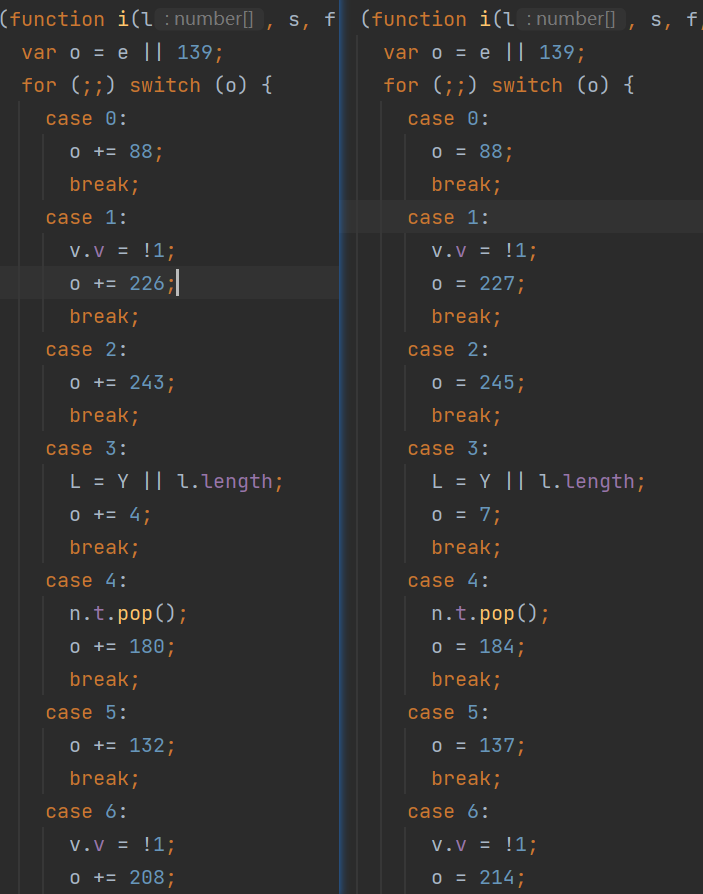

对比效果图如下，处理后清晰了不少。

# 0x03 迷阵寻踪

经过上面还原后 发现很多 case 块只做 o 的修改，那我就知道它下一步要到那个 case 块，唉！我们是不是可以将他们合并起来，插件如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
function getJump(node, name) {
  if (!types.isExpressionStatement(node)) return;
  let { expression } = node;
  if (!types.isAssignmentExpression(expression)) return;
  if (expression.left.name !== name) return;
  return expression.right.value;
}

function getCaseJump(map, name, node) {
  let { test, consequent } = node;
  let list = [];
  let con = consequent[consequent.length - 1];
  let num = getJump(con, name);
  if (num !== undefined) {
    list.push(num);
  }
  if (types.isIfStatement(con)) {
    let { consequent, alternate } = con;
    let num = getJump(consequent, name);
    if (num !== undefined) {
      list.push(num);
    }
    num = getJump(alternate, name);
    if (num !== undefined) {
      list.push(num);
    }
  }
  map[test.value] = list;
}

function removeDuplicates(arr1, arr2) {
  let result = []; // 存储删除的元素的数组

  for (let i = 0; i < arr1.length; i++) {
    let found = false;

    for (let j = 0; j < arr2.length; j++) {
      if (arr1[i] === arr2[j]) {
        result.push(arr1[i]); // 将相同的元素存储到结果数组中
        arr2.splice(j, 1); // 删除arr2中的相同元素
        found = true;
        break;
      }
    }
    if (found) {
      arr1.splice(i, 1); // 删除arr1中的相同元素
      i--; // 由于删除了元素，需要调整索引
    }
  }
  return result;
}

function controlFlowStructure(si, map, cases, stack = [], body = []) {
  if (!map.loop) map.loop = [];
  if (stack.includes(si)) {
    if (map.loop.indexOf(si) === -1) map.loop.push(si);
    return body;
  }
  let item = map[si];
  body = body.concat(cases[si].consequent);
  switch (item.length) {
    case 0:
      return body;
    case 1:
      return controlFlowStructure(item[0], map, cases, stack, body);
    case 2:
      stack.push(si);
      body[body.length - 1].consequent = types.blockStatement(
        controlFlowStructure(item[0], map, cases, stack, [])
      );
      if (map.loop.includes(si)) {
        let { test, consequent } = body[body.length - 1];
        body[body.length - 1] = types.whileStatement(test, consequent);
        body = body.concat(
          controlFlowStructure(item[1], map, cases, stack, [])
        );
      } else {
        body[body.length - 1].alternate = types.blockStatement(
          controlFlowStructure(item[1], map, cases, stack, [])
        );
        body = body.concat(
          removeDuplicates(
            body[body.length - 1].consequent.body,
            body[body.length - 1].alternate.body
          )
        );
      }
      stack.pop();
      return body;
  }
}

const MergeCases = {
  SwitchStatement(path) {
    const { discriminant, cases } = path.node;
    const name = discriminant.name;
    let binding = path.scope.getBinding(name);
    let start = binding.path.node.init.right.value;
    let map = {};
    for (let i = 0; i < cases.length; i++) {
      getCaseJump(map, name, cases[i]);
    }
    path.replaceInline(controlFlowStructure(start, map, cases));
  },
};

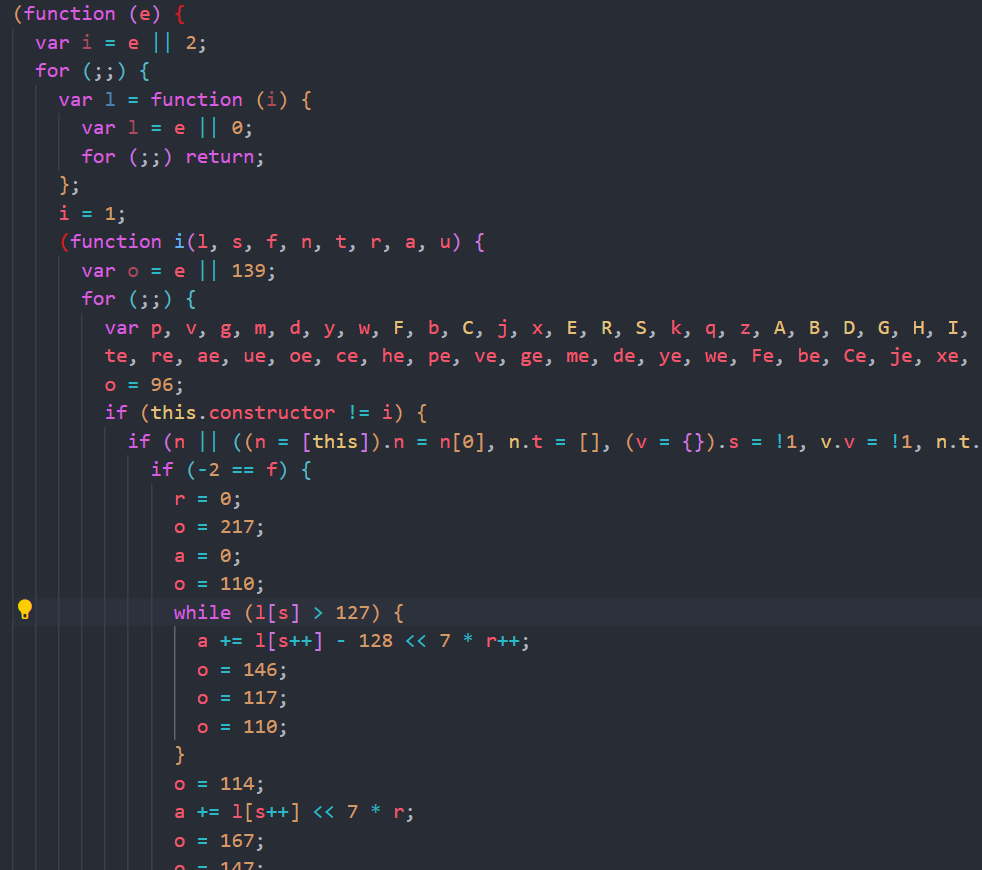

对比图如下，都有实质的代码了。

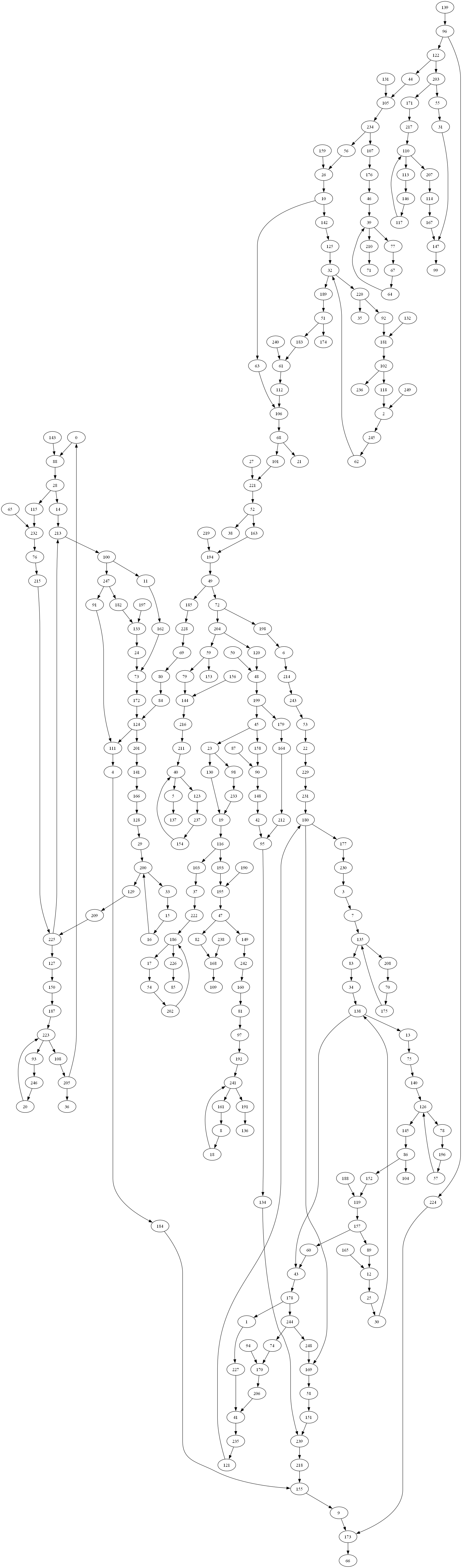

控制流程图

# 0x04 移除污秽

将指针修改的代码去除

1
2
3
4
5
6
7
8
9
10
11
12
const CleaningUpGarbage = {
  ForStatement(path) {
    let p = path.getPrevSibling();
    let name = p.node.declarations[0].id.name;
    path.scope.traverse(path.scope.block, {
      AssignmentExpression(_path) {
        if (!types.isIdentifier(_path.node.left, { name: name })) return;
        _path.remove();
      },
    });
  },
};

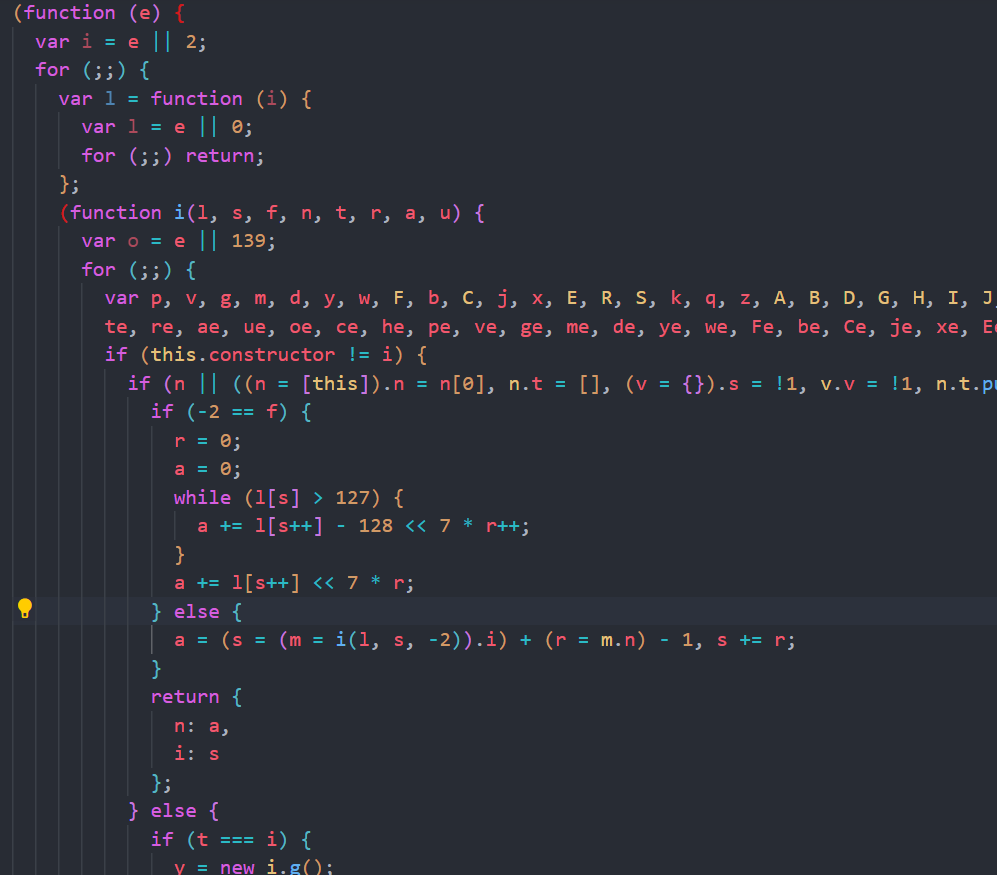

移除无关代码

# 0x05 结构优化

优化 ifelse 结构，使其更便于阅读。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
function isEndNode(nodes) {
  let typeList = ["ReturnStatement", "ThrowStatement"];
  for (let i = 0; i < nodes.length; i++) {
    if (typeList.includes(nodes[i].type)) {
      return true;
    }
  }
  return false;
}

const ifOptimization = {
  IfStatement(path) {
    let { test, consequent, alternate } = path.node;
    if (!alternate) return;
    if (isEndNode(consequent.body)) {
      path.insertAfter(alternate.body);
      path.node.alternate = null;
    } else if (isEndNode(alternate.body)) {
      path.insertAfter(consequent.body);
      path.replaceInline(
        types.ifStatement(types.unaryExpression("!", test), alternate, null)
      );
    } else if (
      types.isIfStatement(consequent.body[consequent.body.length - 1]) &&
      isEndNode(consequent.body[consequent.body.length - 1].consequent.body)
    ) {
      if (
        generator(alternate.body[0]).code ===
        generator(consequent.body[consequent.body.length - 1].alternate.body[0])
          .code
      ) {
        path.insertAfter(
          consequent.body[consequent.body.length - 1].alternate.body
        );
        consequent.body[consequent.body.length - 1].alternate = null;
        path.node.alternate = null;
      }
    }
  },
};

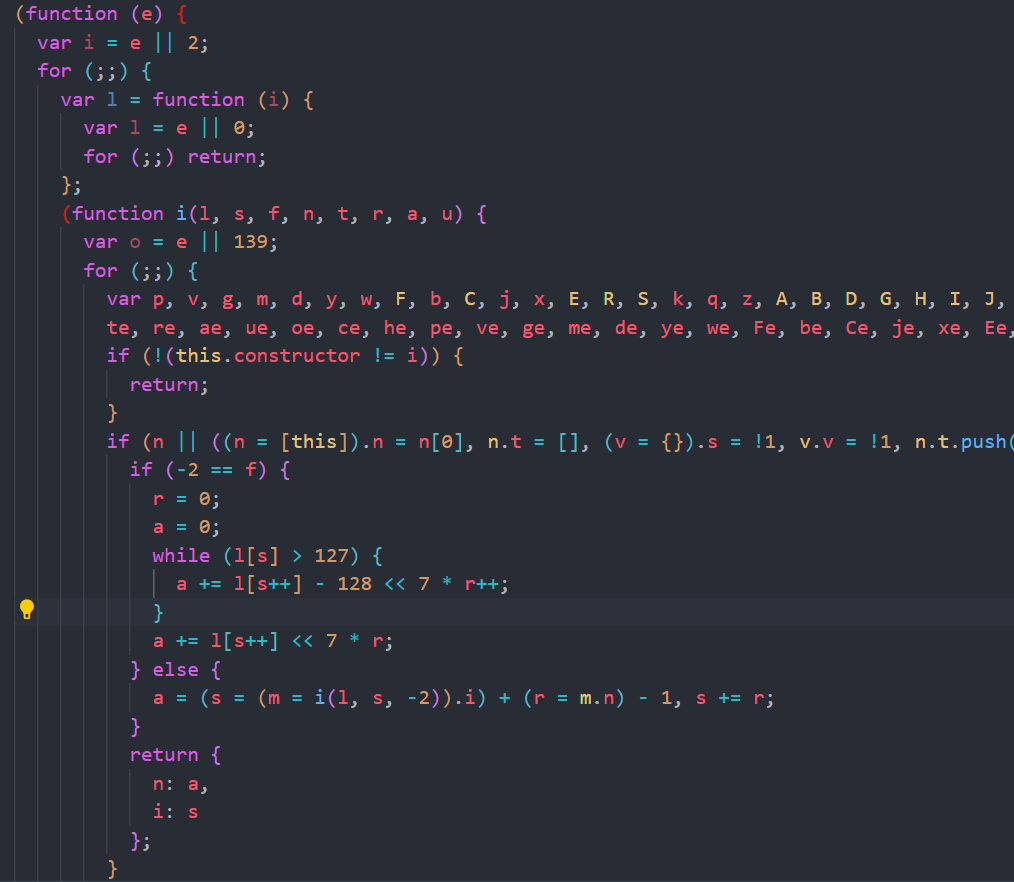

处理后逻辑尽现。

# 0x06 答辩还原

这里其实就是嵌套的三元表达式，先手动还原几条能发现他本质是 switch

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
const TernaryToSwitch = {
  ConditionalExpression(path, { cases, _name }) {
    let { test, consequent, alternate } = path.node;
    if (!types.isBinaryExpression(test, { operator: "==" })) return;
    let { right, left } = test;
    if (!types.isIdentifier(right) || !types.isNumericLiteral(left)) return;
    if (!cases[right.name]) {
      cases[right.name] = [];
    }
    let body = [
      types.expressionStatement(
        types.assignmentExpression("=", types.identifier(_name), consequent)
      ),
    ];
    body.push(types.breakStatement());
    cases[right.name].push(types.switchCase(test.left, body));
  },
};
const TernaryReturn = {
  ReturnStatement(path) {
    let { argument } = path.node;
    if (!types.isConditionalExpression(argument)) return;
    if (!types.isBinaryExpression(argument.test, { operator: "==" })) return;
    let cases = {};
    let name = argument.test.right.name;
    if (!name) return;
    let _name = `${name}${path.node.start}`;
    path.traverse(TernaryToSwitch, { cases: cases, _name: _name });
    path.insertBefore(
      types.variableDeclaration("var", [
        types.variableDeclarator(types.identifier(_name), null),
      ])
    );
    path.replaceInline(
      types.switchStatement(types.identifier(name), cases[name])
    );
    path.insertAfter(types.returnStatement(types.identifier(_name)));
  },
};

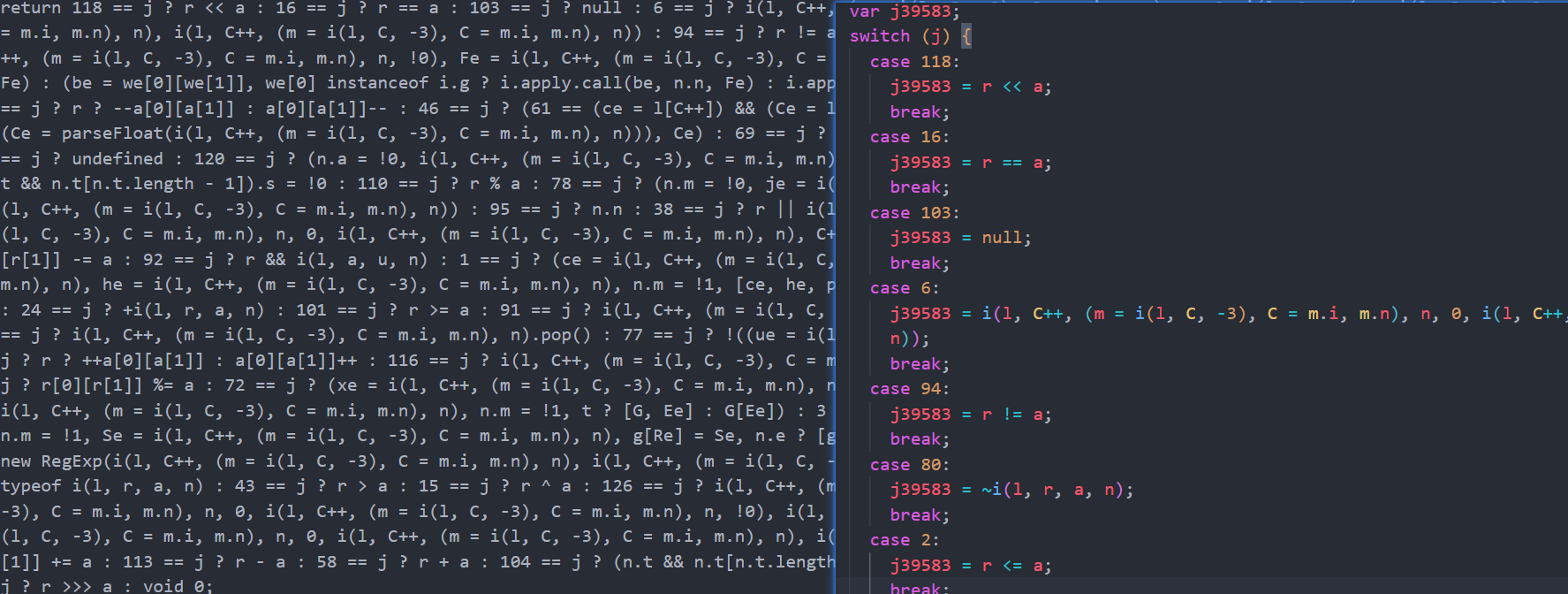

对比效果图如下，处理后犹如拨云见日，茅塞顿开。（还原它主要是为了反编译 jsvmp）

# 0x07 窥探本源

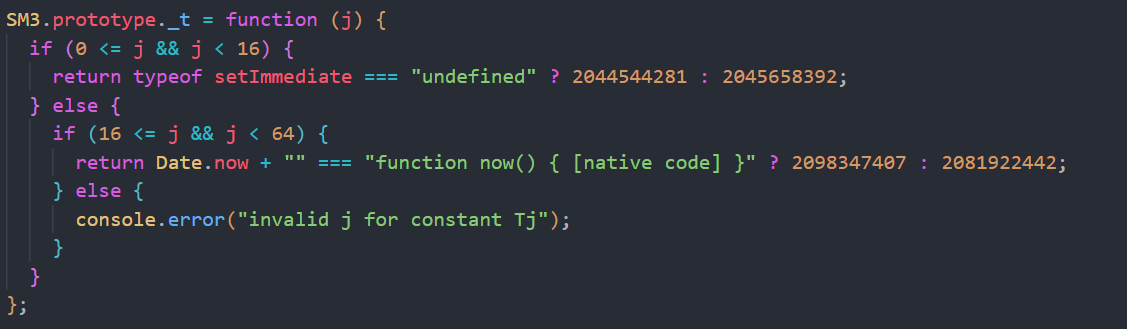

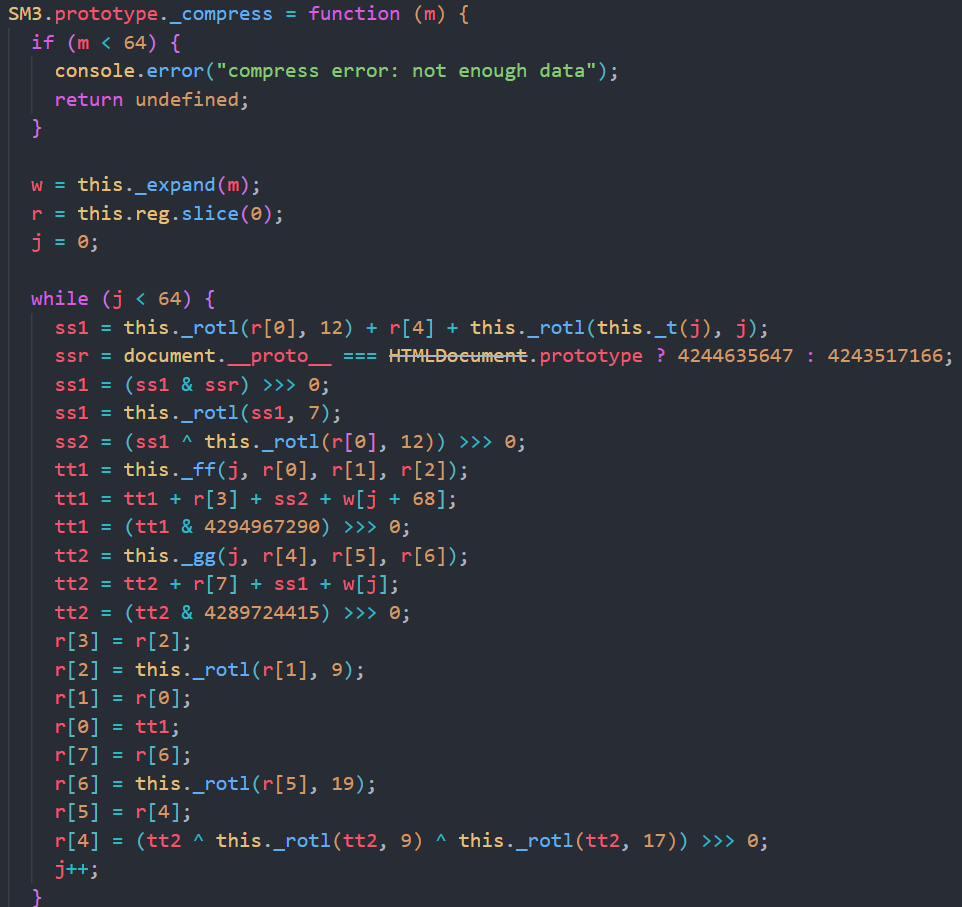

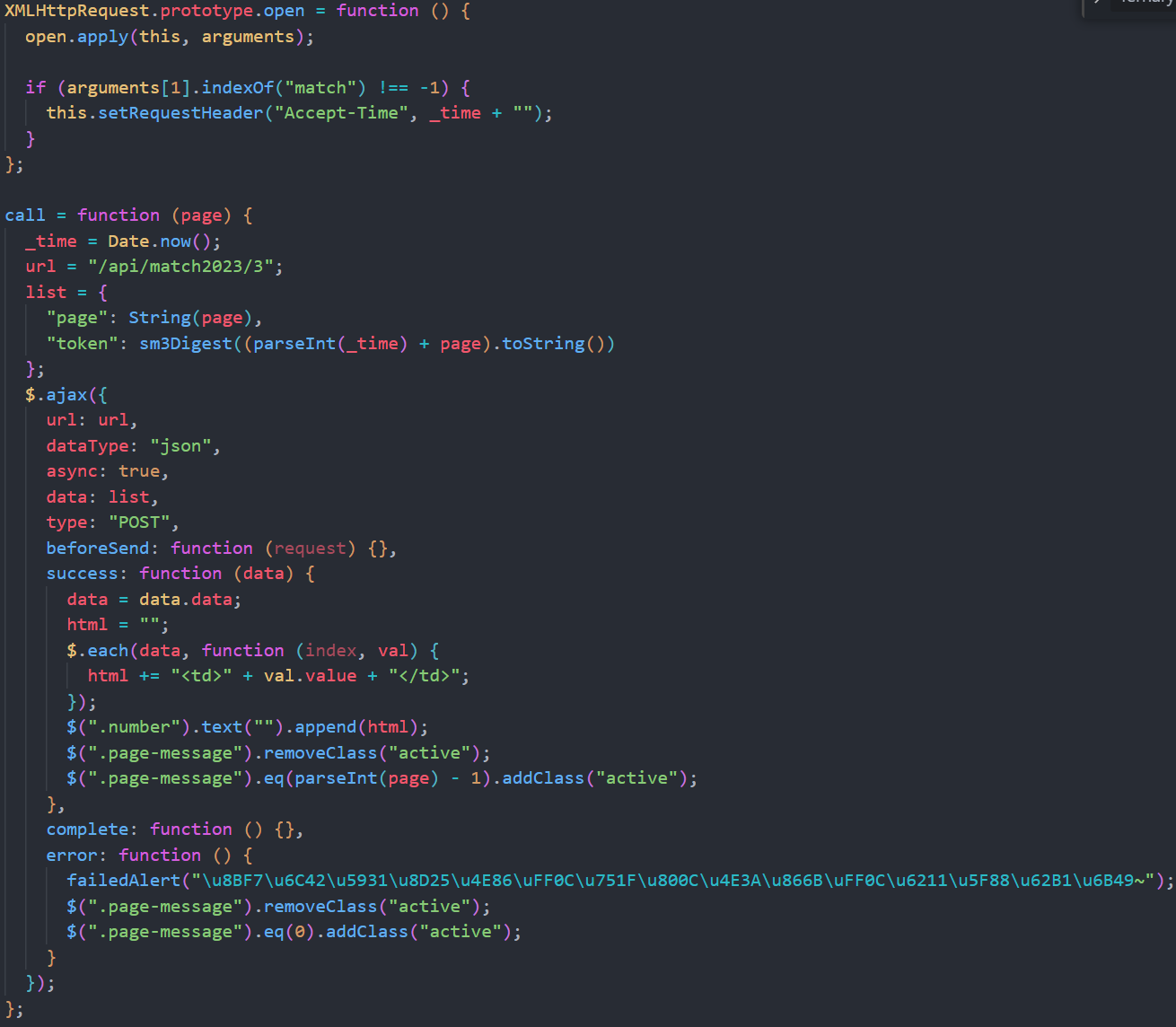

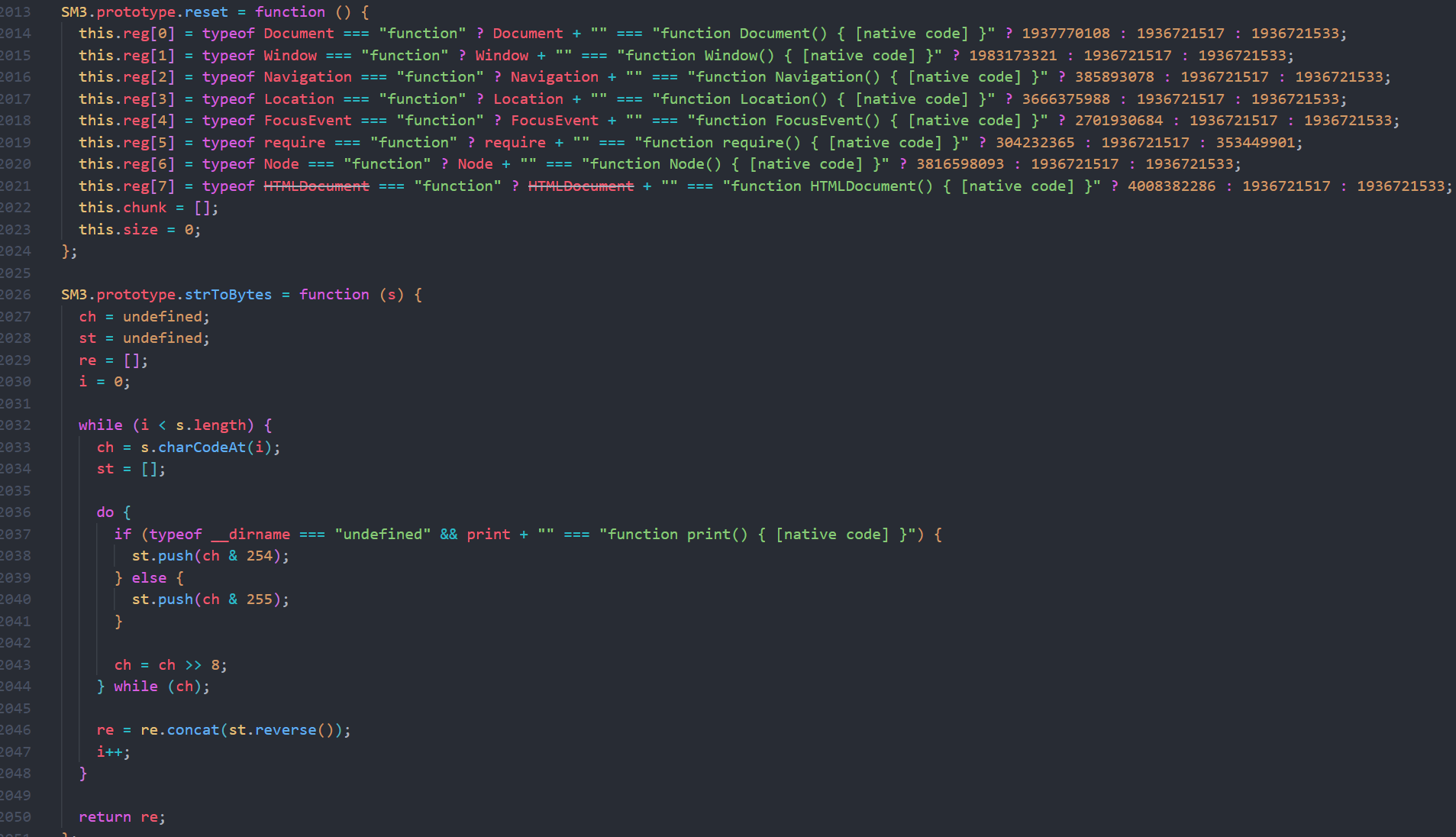

反编译后魔改点与环境检测清晰可见
