# 准备工作

APK：哔哩哔哩 6.13.0

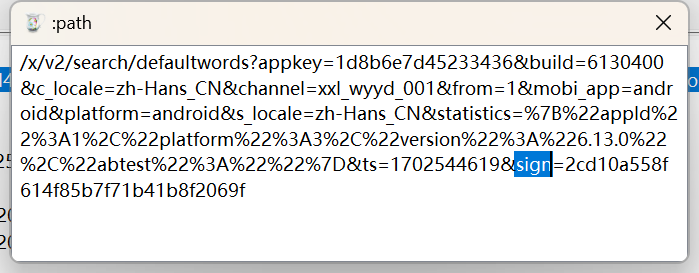

首先通过 charles 抓包（charles 抓包配置）发现加密参数是 sign（32 位）。

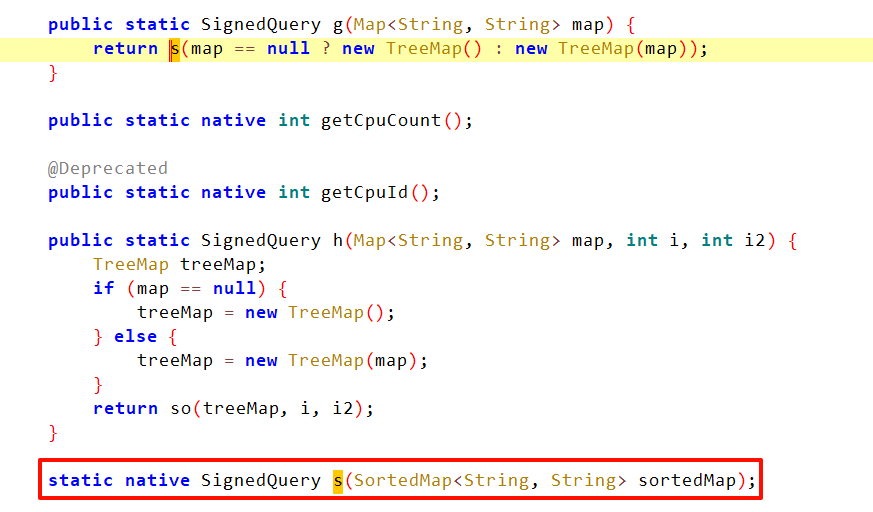

使用 ajdx 打开 apk 后搜索 "sign" 并没有想要的数据，接着试着搜索 "sign=" 经过分析发现是 com.bilibili.nativelibrary.LibBili.s 生成。

# 验证加密

使用 frida 来 hook 验证以下

function hookSign() {
  Java.perform(function () {
    let LibBili = Java.use("com.bilibili.nativelibrary.LibBili");
    LibBili["s"].implementation = function (sortedMap) {
      console.log(
        `LibBili.s is called: sortedMap=${sortedMap.entrySet().toArray()}`
      );
      let result = this["s"](sortedMap);
      console.log(`LibBili.s result=${result}`);
      return result;
    };
  });
}
setImmediate(hookSign);

frida hook 日志，很明显 sign 就是在这里面生成的。

1
2

[MI 8 Pro::tv.danmaku.bili ]-> LibBili.s is called: sortedMap=access_key=null,appkey=1d8b6e7d45233436,build=6130400,c_locale=zh-Hans_CN,channel=xxl_wyyd_001,mVersion=71,mallVersion=6130400,mobi_app=android,platform=android,s_locale=zh-Hans_CN,statistics={"appId":1,"platform":3,"version":"6.13.0","abtest":""}
LibBili.s result=access_key=&appkey=1d8b6e7d45233436&build=6130400&c_locale=zh-Hans_CN&channel=xxl_wyyd_001&mVersion=71&mallVersion=6130400&mobi_app=android&platform=android&s_locale=zh-Hans_CN&statistics=%7B%22appId%22%3A1%2C%22platform%22%3A3%2C%22version%22%3A%226.13.0%22%2C%22abtest%22%3A%22%22%7D&ts=1702547190&sign=83c0620895711a111a4fc8f046b76d9d

# 定位 SO

使用大佬的 hook 脚本并作了点修改

function hook_RegisterNatives() {
  var symbols = Module.enumerateSymbolsSync("libart.so");
  var addrRegisterNatives = null;
  for (var i = 0; i < symbols.length; i++) {
    var symbol = symbols[i];

    //_ZN3art3JNI15RegisterNativesEP7_JNIEnvP7_jclassPK15JNINativeMethodi
    if (
      symbol.name.indexOf("art") >= 0 &&
      symbol.name.indexOf("JNI") >= 0 &&
      symbol.name.indexOf("RegisterNatives") >= 0 &&
      symbol.name.indexOf("CheckJNI") < 0
    ) {
      addrRegisterNatives = symbol.address;
      console.log("RegisterNatives is at ", symbol.address, symbol.name);

      if (addrRegisterNatives != null) {
        Interceptor.attach(addrRegisterNatives, {
          onEnter: function (args) {
            var env = args[0];
            var java_class = args[1];
            var class_name = Java.vm.tryGetEnv().getClassName(java_class);
            // console.log(class_name);
            // 筛选类
            var taget_class = "com.bilibili.nativelibrary.LibBili";
            if (class_name === taget_class) {
              console.log("\n[RegisterNatives] method_count:", args[3]);
              var methods_ptr = ptr(args[2]);

              var method_count = parseInt(args[3]);
              for (var i = 0; i < method_count; i++) {
                var name_ptr = Memory.readPointer(
                  methods_ptr.add(i * Process.pointerSize * 3)
                );
                var sig_ptr = Memory.readPointer(
                  methods_ptr.add(
                    i * Process.pointerSize * 3 + Process.pointerSize
                  )
                );
                var fnPtr_ptr = Memory.readPointer(
                  methods_ptr.add(
                    i * Process.pointerSize * 3 + Process.pointerSize * 2
                  )
                );

                var name = Memory.readCString(name_ptr);
                var sig = Memory.readCString(sig_ptr);
                var find_module = Process.findModuleByAddress(fnPtr_ptr);
                console.log(
                  "[RegisterNatives] java_class:",
                  class_name,
                  "name:",
                  name,
                  "sig:",
                  sig,
                  "fnPtr:",
                  fnPtr_ptr,
                  "module_name:",
                  find_module.name,
                  "module_base:",
                  find_module.base,
                  "offset:",
                  ptr(fnPtr_ptr).sub(find_module.base)
                );
              }
            }
          },
        });
      }
    }
  }
}

setImmediate(hook_RegisterNatives);

添加筛选条件后输出的结果不多

Spawning `tv.danmaku.bili`...
RegisterNatives is at  0xf0b3cbd9 _ZN3art3JNIILb0EE15RegisterNativesEP7_JNIEnvP7_jclassPK15JNINativeMethodi
RegisterNatives is at  0xf0b910d5 _ZN3art3JNIILb1EE15RegisterNativesEP7_JNIEnvP7_jclassPK15JNINativeMethodi
Spawned `tv.danmaku.bili`. Resuming main thread!
[MI 8 Pro::tv.danmaku.bili ]->
[RegisterNatives] method_count: 0x7
[RegisterNatives] java_class: com.bilibili.nativelibrary.LibBili name: a sig: (Ljava/lang/String;)Ljava/lang/String; fnPtr: 0xb8369c35 module_name: libbili.so module_base: 0xb8368000 offset: 0x1c35
[RegisterNatives] java_class: com.bilibili.nativelibrary.LibBili name: ao sig: (Ljava/lang/String;II)Ljava/lang/String; fnPtr: 0xb8369c3b module_name: libbili.so module_base: 0xb8368000 offset: 0x1c3b
[RegisterNatives] java_class: com.bilibili.nativelibrary.LibBili name: b sig: (Ljava/lang/String;)Ljavax/crypto/spec/IvParameterSpec; fnPtr: 0xb8369c49 module_name: libbili.so module_base: 0xb8368000 offset: 0x1c49
[RegisterNatives] java_class: com.bilibili.nativelibrary.LibBili name: s sig: (Ljava/util/SortedMap;)Lcom/bilibili/nativelibrary/SignedQuery; fnPtr: 0xb8369c4f module_name: libbili.so module_base: 0xb8368000 offset: 0x1c4f
[RegisterNatives] java_class: com.bilibili.nativelibrary.LibBili name: so sig: (Ljava/util/SortedMap;II)Lcom/bilibili/nativelibrary/SignedQuery; fnPtr: 0xb8369c55 module_name: libbili.so module_base: 0xb8368000 offset: 0x1c55
[RegisterNatives] java_class: com.bilibili.nativelibrary.LibBili name: getCpuCount sig: ()I fnPtr: 0xb8369c63 module_name: libbili.so module_base: 0xb8368000 offset: 0x1c63
[RegisterNatives] java_class: com.bilibili.nativelibrary.LibBili name: getCpuId sig: ()I fnPtr: 0xb8369c67 module_name: libbili.so module_base: 0xb8368000 offset: 0x1c67

这就是我们需要的结果，module_name: libbili.so 表示 s 函数在 libbili.so 中。
offset: 0x1c4f 偏移量为 0x1c4f 可以理解为函数起始地址。

[RegisterNatives] java_class: com.bilibili.nativelibrary.LibBili name: s sig: (Ljava/util/SortedMap;)Lcom/bilibili/nativelibrary/SignedQuery; fnPtr: 0xb8369c4f module_name: libbili.so module_base: 0xb8368000 offset: 0x1c4f
